First-run verification

v0.2.0 passed every test it had and still failed its owner on a clean machine: the exe opened no window, Monitor Input moved the meters and played nothing, Guitar Rig was “crashed while reading”, and cables did not play. The tests drove the code; none of them drove the product someone downloads. This is the record of doing that: the release build installed and used through its own window, with a guitar plugged in, and what reached the headphones measured from outside the application.

Setup


Date 2 October 2026
Machine the development laptop (Intel i7-1165G7), Windows 11 Pro 26200, Secure Boot off, test-signing off, no ASIO driver installed
Interface Audio Array AI-04 (USB, Windows’ class driver): a guitar on input 1, headphones on its output
Build ToneSphere-0.2.1-Setup.exe from CI run 36973575789 (commit 074451f), downloaded as a run artifact
Plugin Native Instruments Guitar Rig 7.0.1, installed by the owner
Driving the window Windows UI Automation from PowerShell (System.Windows.Automation): every click, choice and slider move went through the app’s own controls
Measuring tests/hardware/first_run_probe.py, a separate process: it captures the AI-04’s input and its output’s loopback (exactly what ToneSphere hands the headphones) in shared mode and compares them — level, dominant frequency, and the correlation of each ear with input 1

The guitar was not played; its pickups’ 50 Hz hum at about −49.6 dBFS was the signal. That is enough to identify it in the output (a correlation of 0.9 and more) and to measure levels.

What happened

Installing. The installer, started through Explorer as a double-click starts it, ran its wizard without an administrator prompt (destination %LOCALAPPDATA%\Programs\ToneSphere), created a Start menu shortcut, and on Finish started ToneSphere. The process ran non-elevated (token elevation 0; the shell that drove it was elevated, 1). A downloaded copy carries the Mark of the Web, and SmartScreen then asks first; a CI artifact fetched with gh does not, so that prompt did not appear here. It was reproduced on 1 October with a marked copy of v0.2.0, and is what the owner took for an elevation request.

First window. With no session yet, the engine started by itself on Windows WASAPI, exclusive, 128 frames at 48 kHz. The backend list showed “ASIO — no ASIO driver installed”, disabled.

Monitor Input. The dialog preselected the interface over the laptop’s own devices:

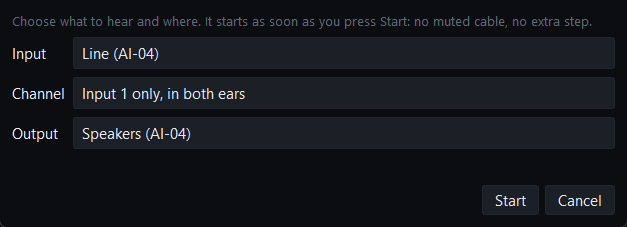

The Monitor dialog

Start: the cable appeared, the status bar said Monitoring Line (AI-04) -> Speakers (AI-04), 128 excl, and latency 6.0 ms rep (2.7 nom) — reported and nominal, labelled so; nothing had measured a round trip, and nothing claimed to.

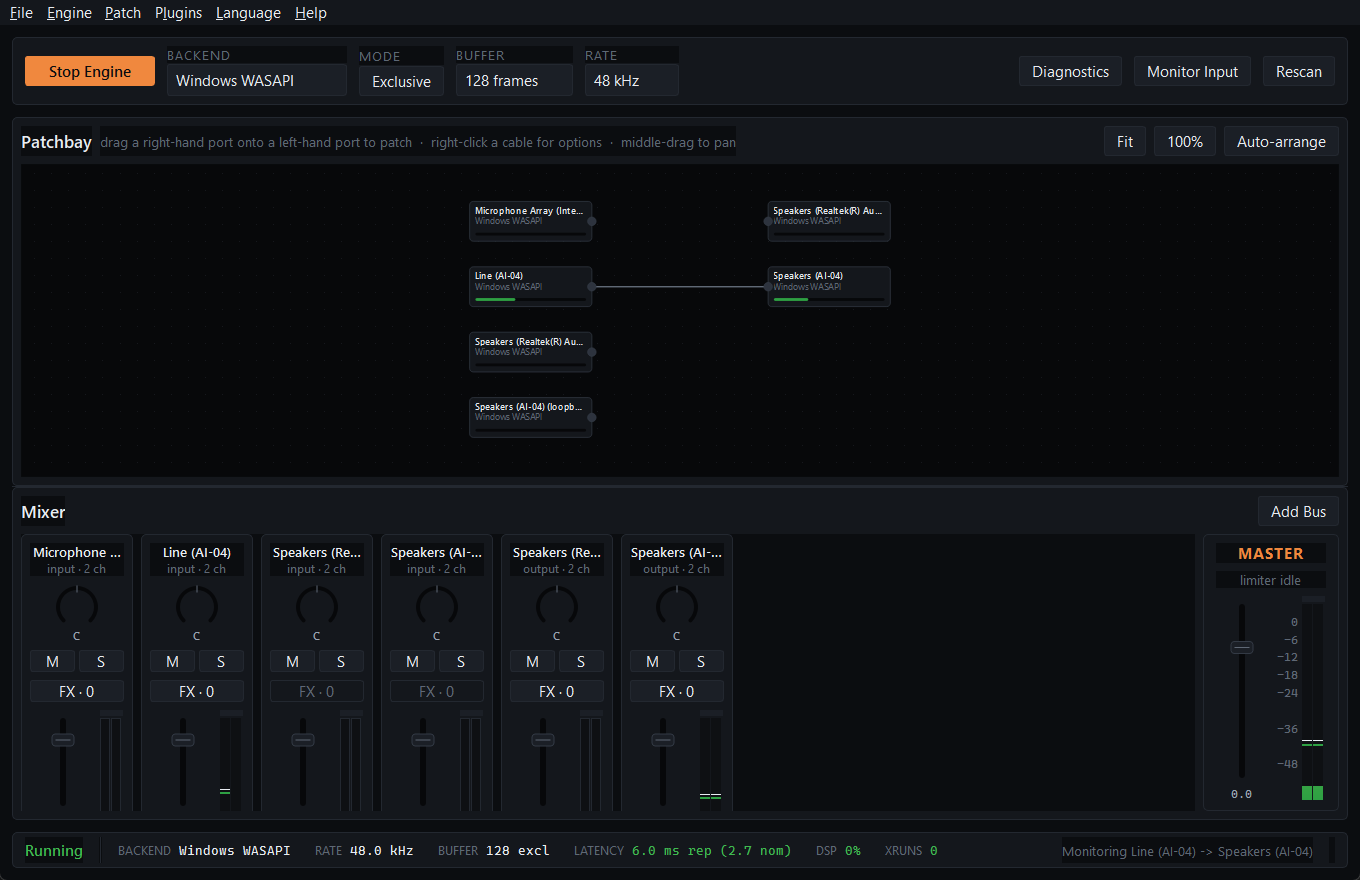

Monitoring, exclusive

An exclusive stream locks other programs out of the device, the probe included, so the mode button was pressed (it now reads Shared) and the output measured:

  Input 1 Left ear Right ear Ear − input Correlation with input 1
Monitoring −49.62 dBFS, 50.0 Hz −52.50 dBFS, 50.0 Hz −52.50 dBFS −2.88 dB 0.941

One input channel to both ears at constant power puts each ear 3.01 dB below the input.

Guitar Rig. FX on the Line (AI-04) strip → Add… opened the plugin browser, whose first scan timed out after 120 s — a defect, below. Rescan read it in 2.0 s. Insert put it on the input, live; its parameters were read back from it, and its Rack Master Volume, moved from the parameter list, displayed +0.0dB, then -12.0dB.

  Input 1 Each ear Ear − input Change Correlation
Guitar Rig at −12.0 dB −49.61 dBFS −64.74 dBFS −15.13 dB −12.25 dB 0.903

Its editor opened inside ToneSphere and closed cleanly:

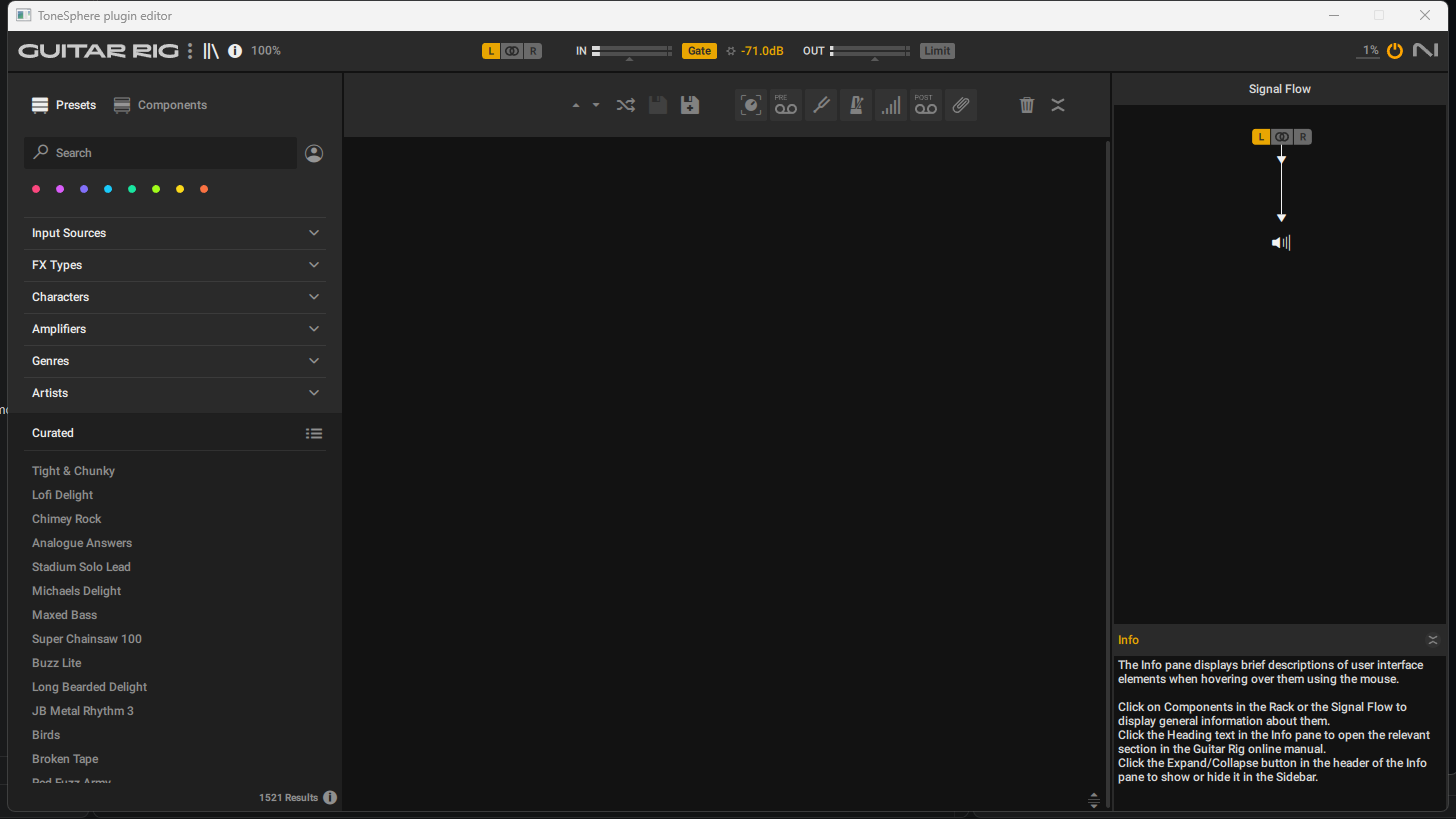

Guitar Rig's editor in ToneSphere

Closing and reopening. The window was closed with its close button’s message; the session was written (session.yaml: the route with input channel 0, shared mode, Guitar Rig with its state). Started again from the Start menu shortcut, it came back running, in Shared mode, with the cable and FX · 1, playing:

  Input 1 Each ear Ear − input Correlation
After reopening −49.59 dBFS −64.62 dBFS −15.03 dB 0.967

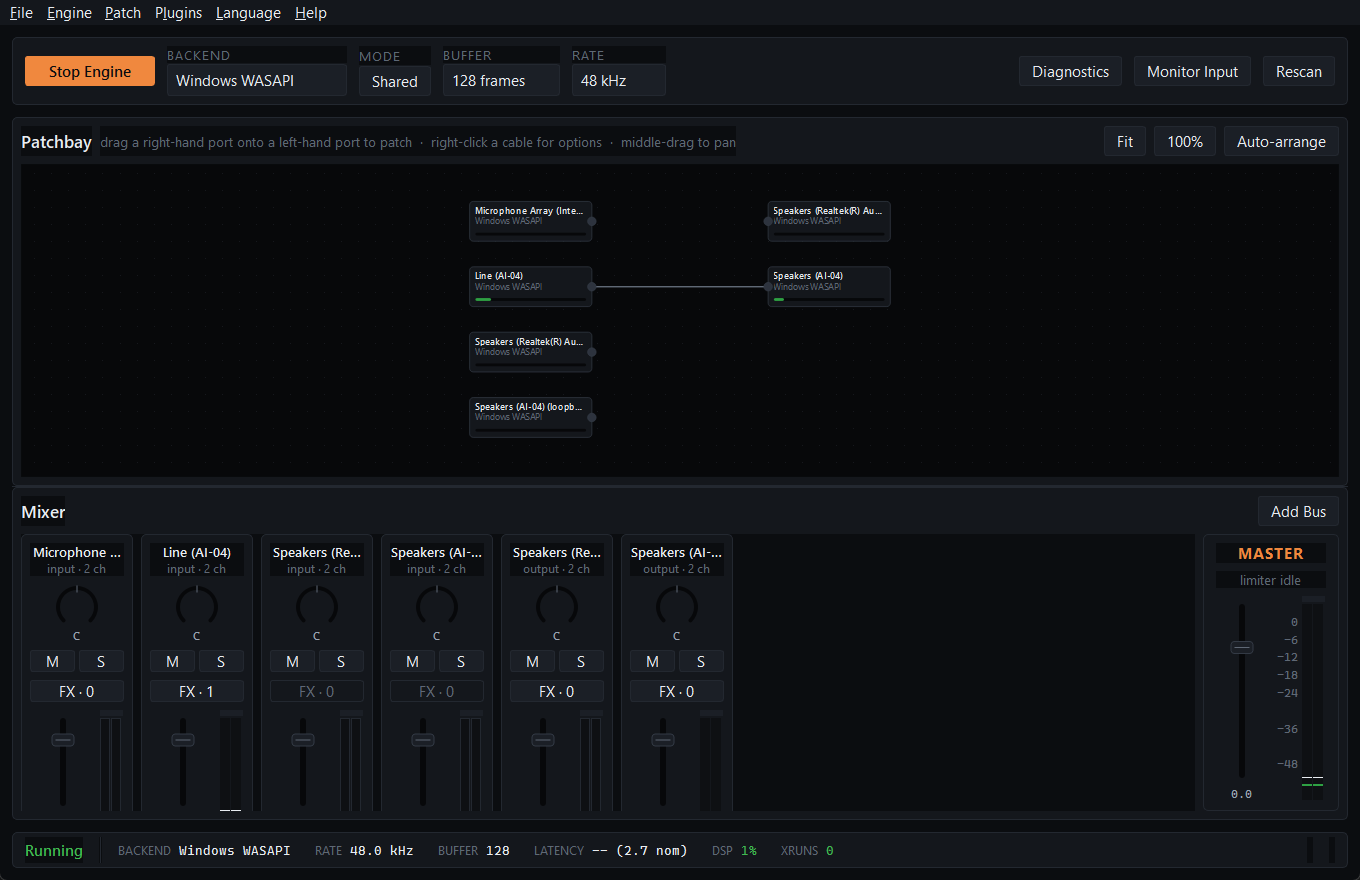

Reopened

The same run against the locally built app, earlier the same day, gave −3.02 dB monitoring, −12.20 dB for Guitar Rig’s −12.0 dB, and −15.05 dB after reopening.

Defects this found, and what became of them

Found Cause Fixed by
A Guitar Rig setting changed while the plugin was not processing was missing from its saved state VST3 hands a change to the processor only in process(), and the plugin saves what its processor has The host flushes queued changes with a zero-sample process() before reading state when no audio thread holds the instance; test_a_change_made_while_nothing_processes_is_in_the_saved_state
After a shared-mode session was restored, the mode button still said Exclusive The button started checked and was never synced from the engine It follows the engine, and its text is the state; test_the_mode_button_shows_the_mode_the_engine_is_in
The disabled ASIO entry was drawn like a choice The style sheet’s popup ignores the disabled state Dimmed explicitly; asserted in the window test
Guitar Rig’s first scan in the installed build timed out at 120 s The scanner wrote its result and then hung in Guitar Rig’s DLL detach on exit: os._exit still runs it on Windows. Reproduced with the installed scanner: the first of five runs hung after writing its result, the other four left in 1.9–2.0 s The scanner terminates itself outright, and the parent ends a child that has reported but not left within 5 s; test_a_scanner_that_hangs_after_reporting_is_ended_and_believed. The same cause explains a skipped hardware test earlier that day

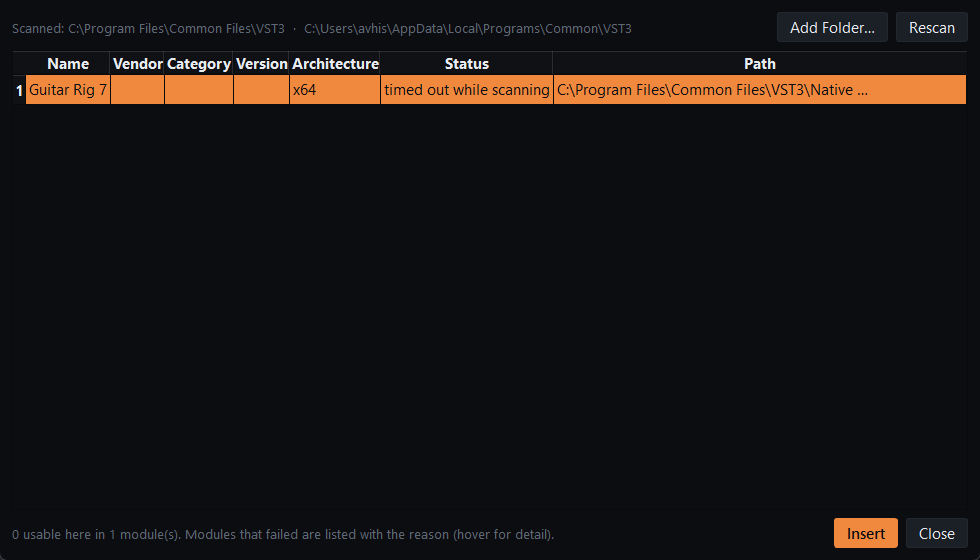

The scan as the installed build reported it

What this does not show

Repeating it

tests/hardware/test_first_run.py repeats the measured part without the clicks: it starts the built app (dist/ToneSphere, or TONESPHERE_APP) on a prepared session — the monitor route, then the route with Guitar Rig at −12 dB — and runs the probe.

uv run pyinstaller --noconfirm tonesphere.spec
uv run pytest tests/hardware/test_first_run.py tests/hardware/test_guitar_rig.py -m hardware -s
